How the Drawing-Set Takeoff Readiness Gate gate works
How the Drawing-Set Takeoff Readiness Gate rolls fourteen sheets into one verdict: the set reads at its weakest sheet, and a measurability gate forces NOT MEASURABLE when any measured sheet has no declared scale - the sample scores 92 on set controls with eleven of fourteen sheets readable, and still reads NOT MEASURABLE.
How the gate works
This tool grades each sheet on whether a machine could measure it, then reads the set at the weakest one. It reads 14 sheets and rolls them into one verdict — the worst, never the average — and then a gate that can only make it worse.
The 14 sheets
| Sheet | Verdict |
|---|---|
| A-101 · Floor Plan — Level 1 | READABLE100 · every signal clear |
| A-102 · Floor Plan — Level 2 | READABLE100 · every signal clear |
| A-201 · Exterior Elevationsfix first | READABLE83 · reads clean, and no scale is declared |
| A-301 · Building Sections | READABLE100 · every signal clear |
| A-501 · Wall Details | READABLE83 · revision behind, legend partial |
| A-601 · Door & Window Schedule | READABLE100 · not measured, out of gate scope |
| S-101 · Foundation Plan | READABLE100 · every signal clear |
| S-201 · Level 2 Framing Plan | READABLE92 · one addendum not incorporated |
| M-101 · HVAC Plan — Level 1 | DEGRADED58 · addendum loose, legend and text partial |
| E-101 · Power Plan — Level 1 | READABLE83 · legend and text partial |
| P-101 · Plumbing Plan — Level 1 | DEGRADED42 · revision behind, addendum loose |
| C-101 · Site Plan (scanned) | DEGRADED50 · raster scan, no legend, graphic scale only |
| FP-101 · Fire Protection Plan | READABLE92 · text partial |
| G-001 · General Notes | READABLE100 · not measured, out of gate scope |
The verdict bands
Any measured sheet with no declared scale forces NOT MEASURABLE, whatever both scores say — a quantity read off an undeclared scale is not a quantity. It fires a second way when the set has neither a controlled source nor a revision log, because then nothing establishes which version you are measuring. It releases the moment the trigger clears, and it can only ever make the verdict worse.
In the worked sample it reads NOT MEASURABLE — The set-level controls score 92 and read TAKEOFF-READY AS DESCRIBED. Eleven of fourteen sheets are READABLE. And the whole set is not measurable, because A-201 has no declared scale — a sheet that scores 83 and reads clean on every other signal. An average would have buried it under thirteen better sheets; the weakest-sheet rule surfaces it, and the fix is one email. The one thing to fix first: A-201 Exterior Elevations · scale declaration — the only sheet standing between this set and a defensible number.
Common questions
Can every sheet look survivable on the How the Drawing-Set Takeoff Readiness gate works and the company still read NOT MEASURABLE?
Yes. The roll-up takes the worst of 14 sheets — never the average — then a worsen-only gate, the Measurability gate gate, escalates when trouble clusters. In the worked sample it reads NOT MEASURABLE because the set-level controls score 92 and read TAKEOFF-READY AS DESCRIBED. Eleven of fourteen sheets are READABLE. And the whole set is not measurable, because A-201 has no declared scale — a sheet that scores 83 and reads clean on every other signal. An average would have buried it under thirteen better sheets; the weakest-sheet rule surfaces it, and the fix is one email.
What is a worsen-only gate?
A dispositive rule that can only lower a verdict, never raise it. One fatal flaw overrides an otherwise-set of survivable lines, because a single disqualifying gap shouldn't hide behind an average of the healthy ones. The tool also names the one thing to fix first — here, "A-201 Exterior Elevations · scale declaration — the only sheet standing between this set and a defensible number".
Grades a drawing set as you describe it, never a person. It opens no drawing and reads no file — every input is an answer you supply, using rules you can see. It produces no quantity, no cost and no bid recommendation, and it is not affiliated with any takeoff or estimating vendor.
Embed this diagram
Free to share and embed with attribution (CC BY 4.0) — keep the link to redhub.ai.
Interactive — renders the live diagram
<iframe src="https://redhub.ai/visuals/tool/drawing-set-takeoff-readiness-gate.html" title="How the Drawing-Set Takeoff Readiness Gate gate works — RedHub AI" width="760" height="2595" loading="lazy" style="border:0;width:100%;max-width:760px"></iframe>
<p style="font:14px/1.5 system-ui,sans-serif"><a href="https://redhub.ai/visuals/tool/drawing-set-takeoff-readiness-gate">How the Drawing-Set Takeoff Readiness Gate gate works</a> — by <a href="https://redhub.ai">RedHub AI</a>, the AI that tells you when to doubt it.</p>Image + link — a static picture for any blog

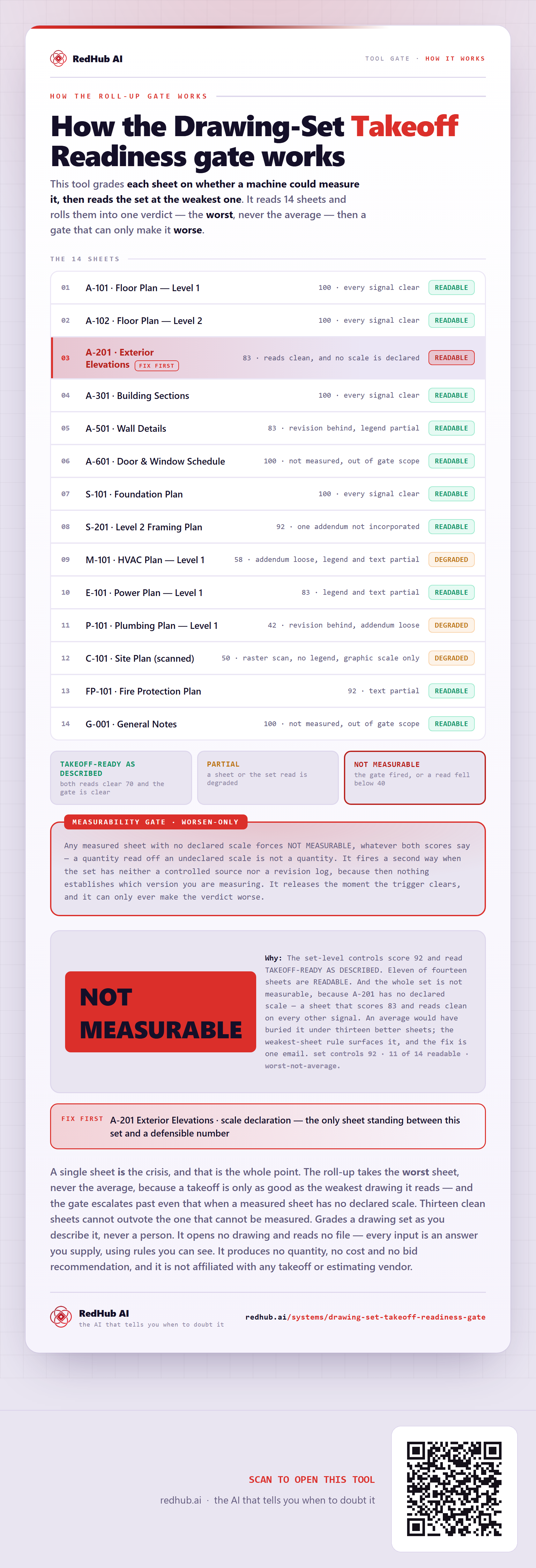

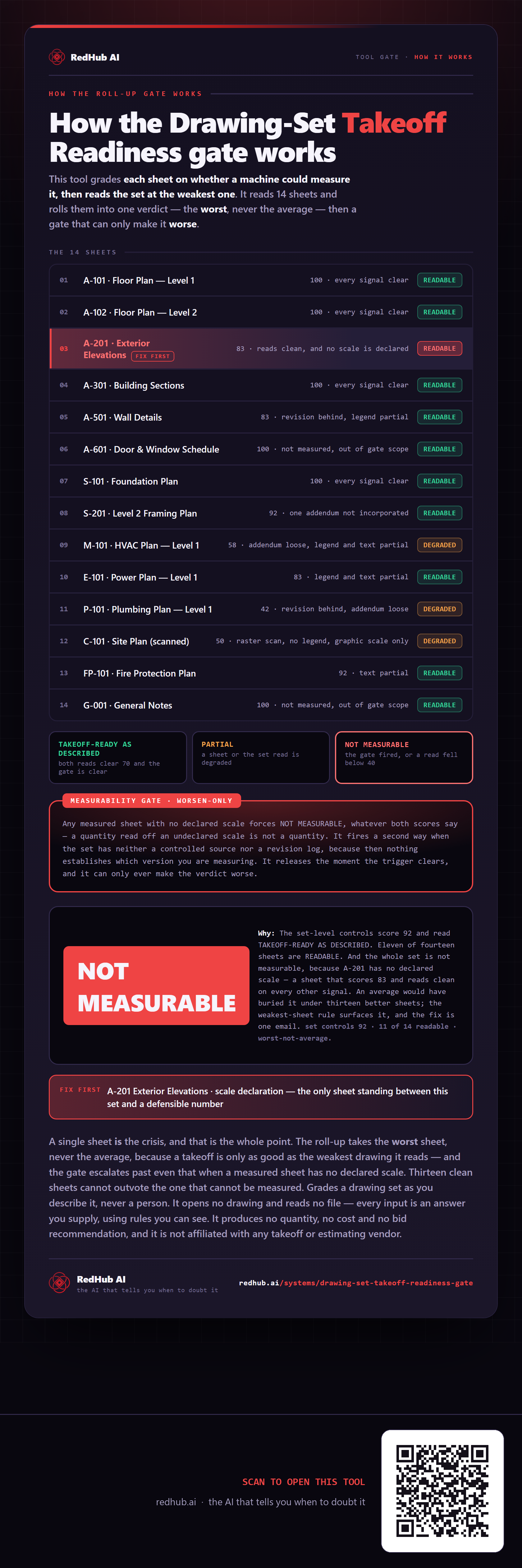

<a href="https://redhub.ai/visuals/tool/drawing-set-takeoff-readiness-gate"><img src="https://redhub.ai/visuals/tool/drawing-set-takeoff-readiness-gate-share.png" alt="Diagram of the Drawing-Set Takeoff Readiness Gate: fourteen drawing sheets each marked readable or degraded, one elevation sheet flagged fix-first for a missing scale declaration, a measurability gate, and a sample verdict reading NOT MEASURABLE." width="760" loading="lazy" style="max-width:100%;height:auto;border-radius:16px"></a>
